CERTIFICATES

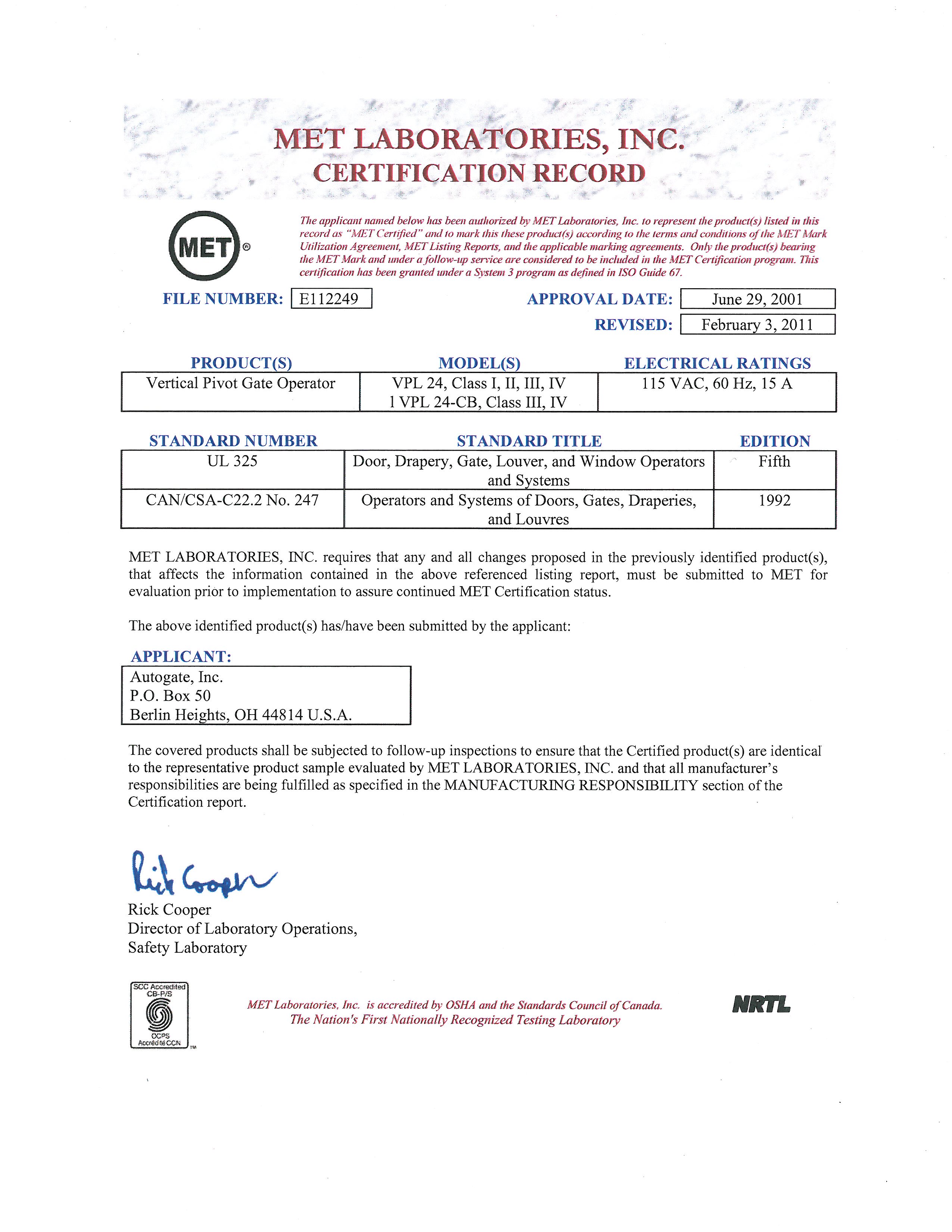

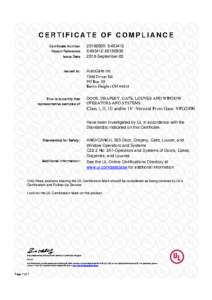

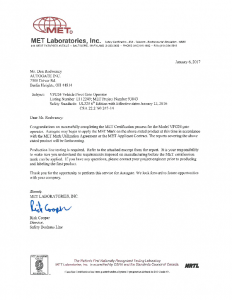

AutoGate holds a Underwriters Laboratories UL 325 Listing as well as CSA/CAN and ASTM F2656 test certifications.  UL 325  and CSA/CAN listings pertain to the manufacturing requirements which must be met to ensure safe operation.  More detailed information regarding these requirements as well as the listing certificate itself can be found here.

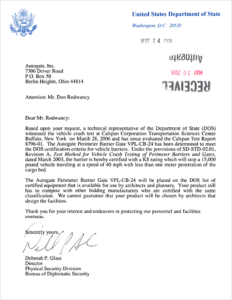

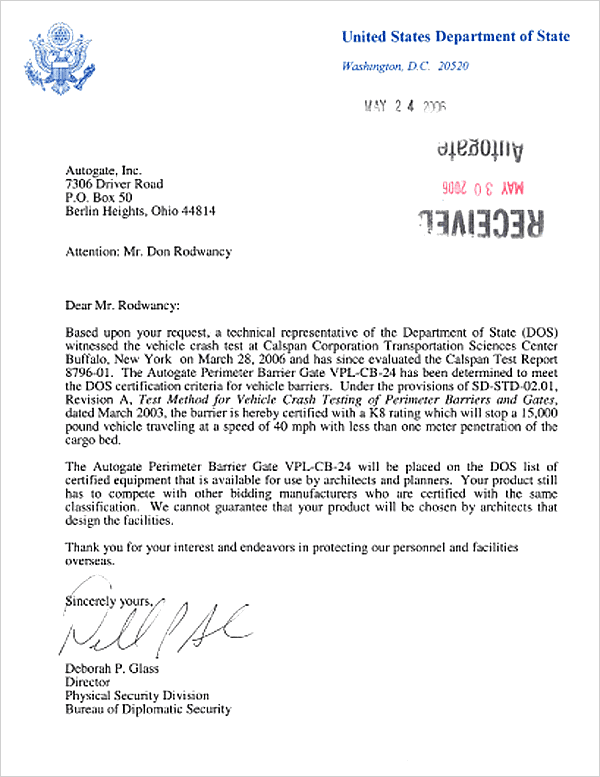

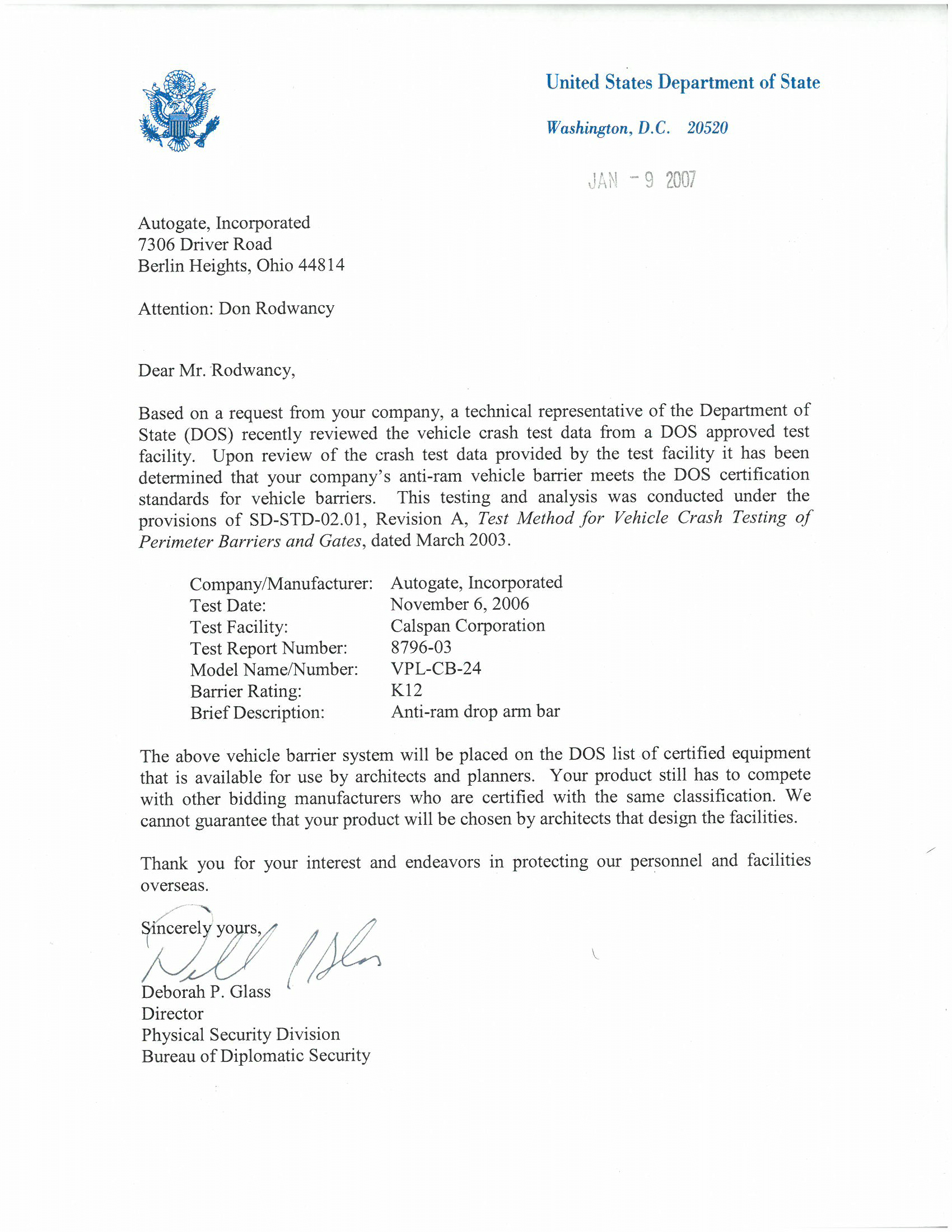

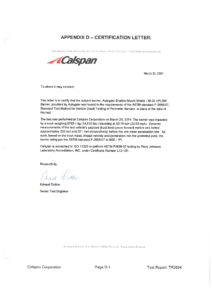

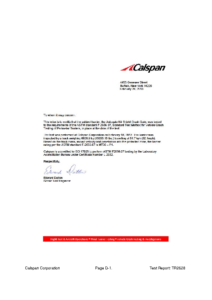

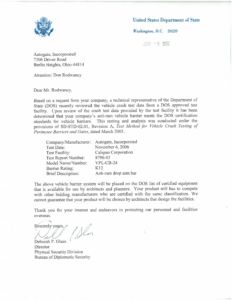

In addition, our active vehicle (anti-terrorism) crash barrier system, The Shield®, holds a ASTM F2656 M50 (DOS K12 )/P1, a ASTM F2656 M40/P1 (DOS K8 ), and a ASTM F2656 M30/P1 (DOS K4) crash rating.  Our ASTM F2656 M30/P1 is also available in a shallow foundation option for sites that are in a high water table or have underground utilities that do not permit deeper foundation excavation.

Effective February 1, 2009, the United States Department of State (DOS) will no longer be certifying anti-ram barriers under its current anti-ram barrier standard, STD-02.01 Revision A dated March 2003. Beginning February 1, 2009, DOS will evaluate only new anti-ram barriers tested under ASTM F2656 Standard Test Method for Vehicle Crash Testing of Perimeter Barriers for the selection and approval for use at DOS facilities. The only barriers considered will be those with an ASTM F2656  rating of M30 P1, M40 P1, and M50 P1.

Speed DOS (K rating) & ASTM F2656 (M rating)

The test specifies perpendicular barrier impact by a 15,000 lb. (6810 kg.) vehicle.
Certification Class                        Speed in mph         Speed in kph
DOS K4/ASTM F2656  M30                  30 mph                        48 kph
K8 DOS/ASTM F2656  M40                  40 mph                        65 kph
DOS K12/ ASTM F2656  M50               50 mph                        80 kph

Penetration

DOS:   L3 = 3 ft. (915 mm) or less L2 = 3 ft. to 20 ft. (915 mm to 6.1 m) L1 = 20 ft. to 50 ft. (6.1 m to 15.3 m)

ASTM F2656:   P1 < 1 m (3.3 ft), P2 1.01 to 7 m (3.31 to 23.0 ft), P3 7.01 to 30 m (23.1 to 98.4 ft)
