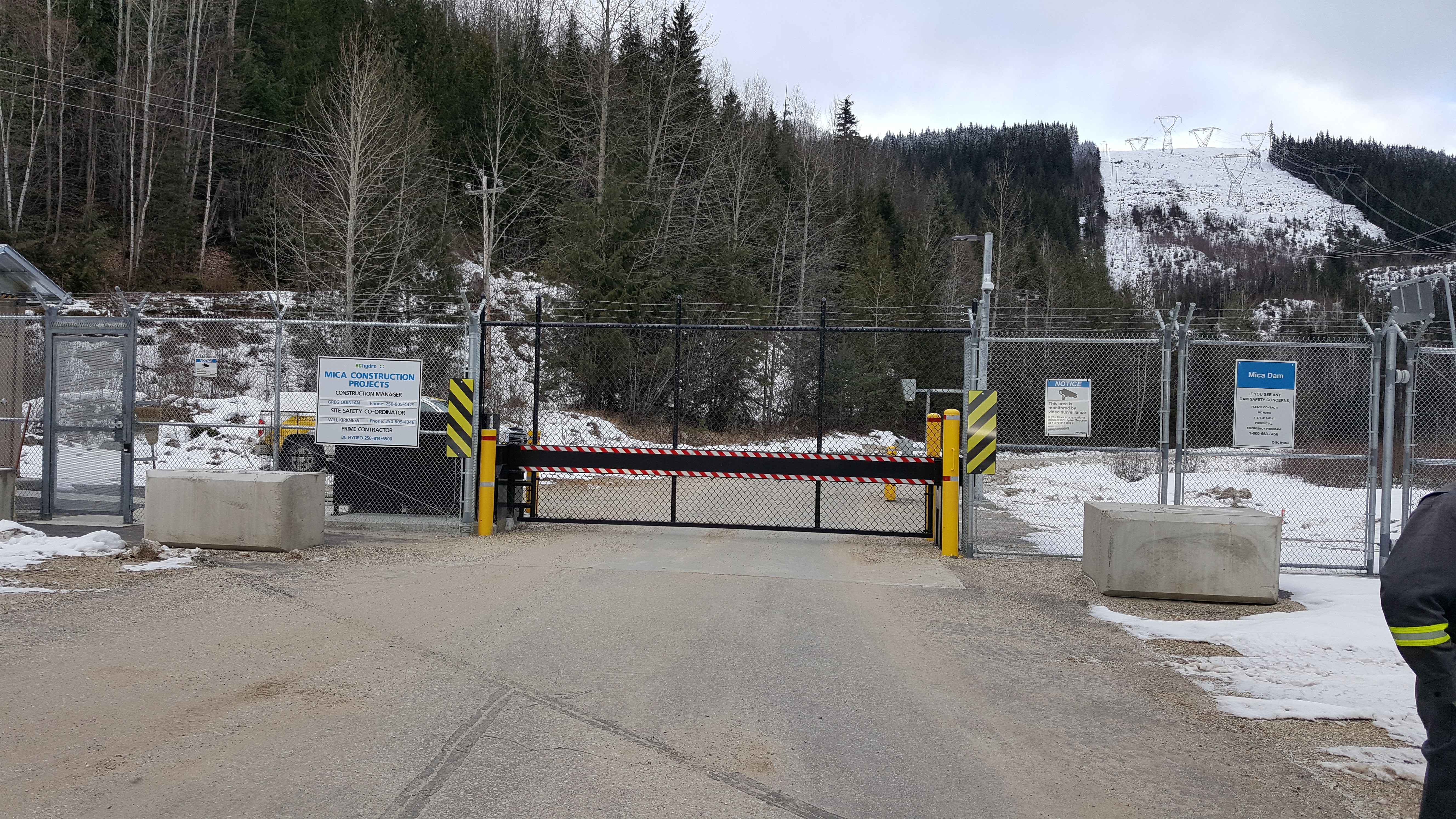

M30 Shield Chainlink

M30 Shield Buckeye

M30 Shield Barrier

3D M50 VP Active Barrier

M50 Shield Barrier

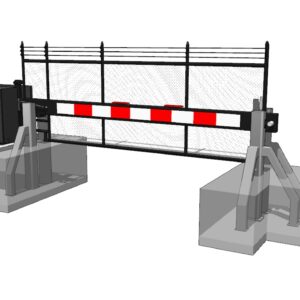

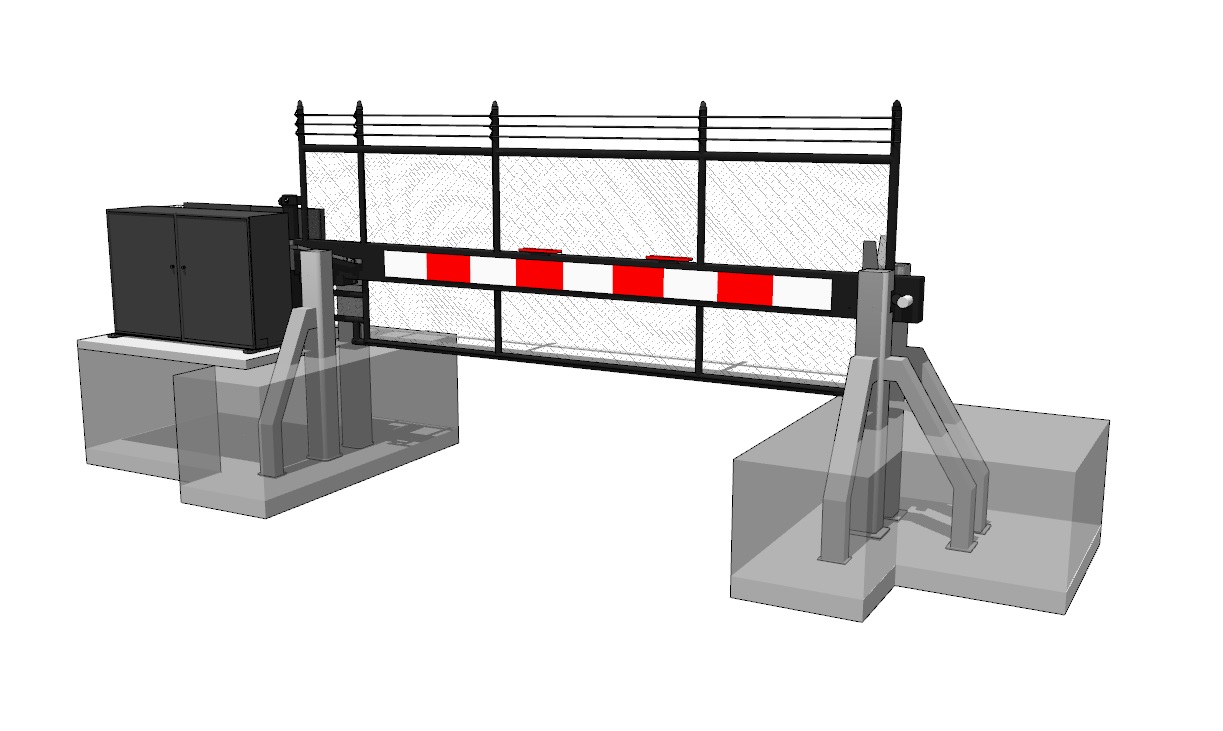

M50 Shield Chainlink

M50 Shield Buckeye

M50 (K12) DRAWINGS

M50 Yoke End Foundations – Left & Right Handed

AutoGate M30 Shallow Drop Arm Preview File

AutoGate M30 Shallow with Gate Preview File

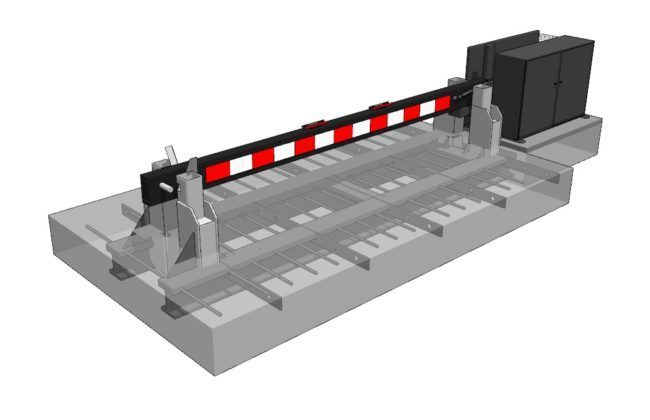

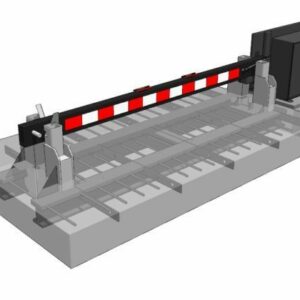

3D M30 Shallow Foundation – barrier arm only

M30 SF Chainlink

M30 SF Buckeye

M30 SF Barrier

M30 DRAWINGS

M30 Shallow Foundation Weldment Drawing

Shield Crash Barriers

AutoGate commits to safeguarding your facility’s perimeter against hostile vehicle threats. Our certified shield crash barriers provide a proven, reliable defense system engineered with integrity and precision. When your security protocols demand the highest level of protection, these barriers deliver an immovable line of defense. Designed and tested to meet stringent ASTM F2656 standards, our shield crash barriers ensure that your assets remain secure, embodying our dedication to your safety and peace of mind.

These robust anti-ram vehicle barriers are built for critical infrastructure protection, including government facilities, data centers, and commercial properties. We design these systems for straightforward integration and dependable performance, reflecting our core values of reliability and commitment. You can trust AutoGate to provide a security solution that performs without failure when it matters most. Secure your site with an anti-ram vehicle barrier system built on a foundation of strength and trust.

THE SHIELD® holds a DOS K12 (L3) /ASTM F2656 M50-P1, a DOS K8 (L3) /ASTM F2656 M40-P1, and a DOS K4 (L3)/ASTM F2656 M30-P1 Crash rating. Our K4 DOS/ASTM F2656 M30/P1 is also available in a SHALLOW FOUNDATION (SF) option for sites that are in a high water table or have underground utilities that do not permit deeper foundation excavation.

Effective February 1, 2009, the United States Department of State (DOS) discontinued certifying Anti-Ram barriers under the Anti-Ram barrier standard, STD-02.01 Revision A dated March 2003. Beginning February 1, 2009, DOS evaluates new anti-ram barriers tested under the ASTM F2656 Standard Test Method for Vehicle Crash Testing of Perimeter Barriers for the selection and approval for use at DOS facilities. The only barriers considered will be those with an ASTM F2656 rating of M30 P1, M40 P1, and M50 P1. The Shield® is installed in a variety of high threat level facilities both nationally and abroad. Please contact us for more detailed information.
